Recessed Curtain Track with Integrated LED – Motorized Ceiling Kit

A recessed curtain track that does three jobs in one ceiling profile: it hides the rail, it lights the room, and it moves the curtain. The track sits flush to the ceiling, an LED strip runs along its length, and a compact motor at the end handles the opening and closing from a handset that also switches the light.

Why a recessed curtain track beats a surface rail

A surface-mounted track is a line across the ceiling you cannot stop seeing. Recessed, the profile sits in a ceiling slot or hard against the slab, so the room reads as one clean plane with the curtain falling out of it — no bracket line, no shadow gap between rail and plaster, nothing to dust along the top.

• Flush finish — the rail disappears into the ceiling instead of hanging below it.
• Full-drop curtains — no visible header, so fabric can run closer to the slab.
• No bracket clutter — the fixings are inside the slot, not on show every time you open the curtains.
• Works at the design stage or after — a formed slot is ideal, but a shallow surface box gets close on a retrofit.

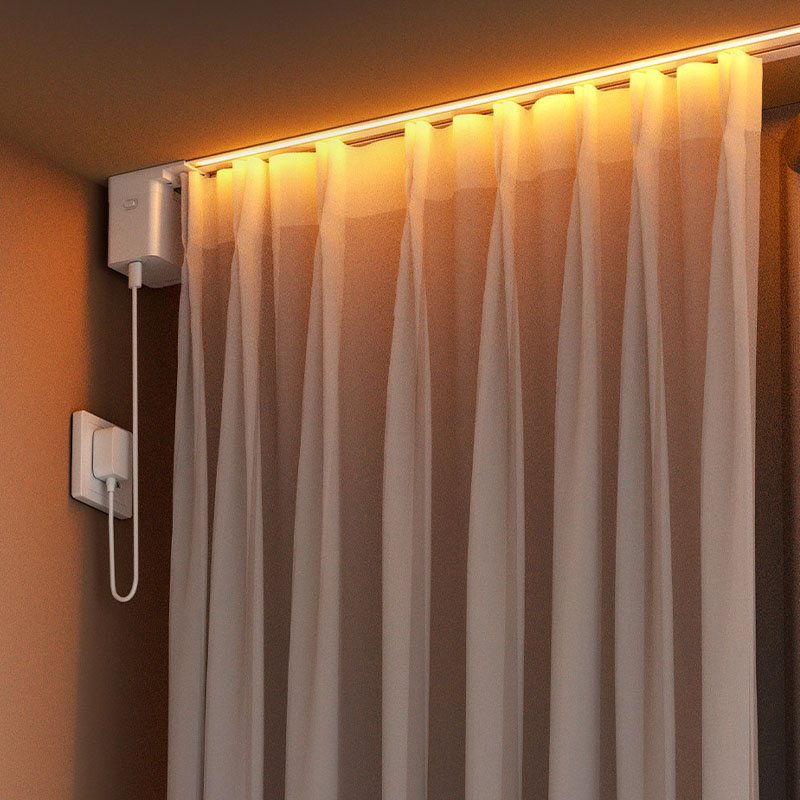

The light is inside the track, not behind it

Most “curtain lighting” is a second LED channel screwed up alongside the rail: two profiles, two shadow lines, two things for the fitter to level. Here the strip runs inside the curtain track profile itself, so the light comes from the same continuous line the curtain hangs from.

In daylight the strip is invisible and the ceiling stays plain. In the evening it washes the top of the curtain and the ceiling plane above it, which is the effect that makes a hotel room look finished — and it is the reason people specify an LED curtain track instead of buying a light and a rail separately. A recessed curtain track with the strip built in removes one profile, one set of fixings and one shadow line.

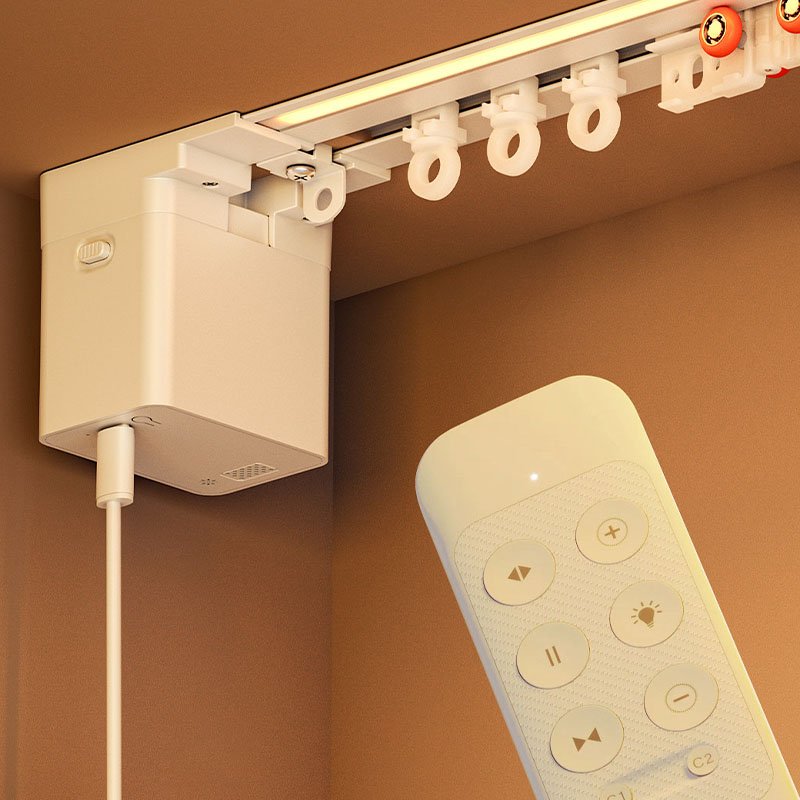

One handset for the curtain and the light

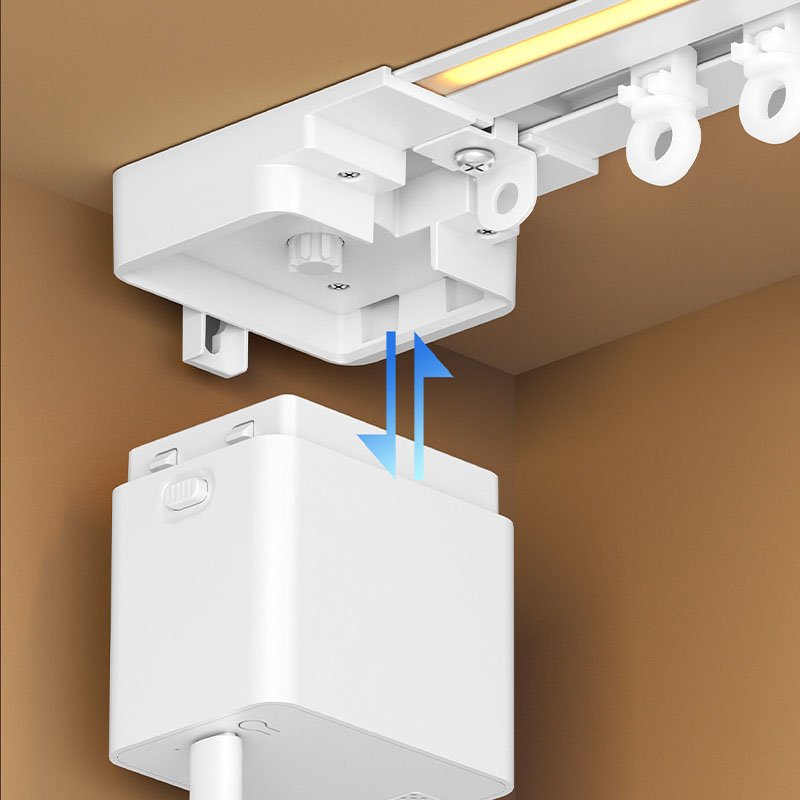

The motor is the compact end unit, not a box that hangs in the middle of the run. It drives the gliders; the same handset carries the light control, so nobody has to find a second remote to dim the room.

• Open, stop, close — the three buttons you use every day.
• Light on the same handset — the strip is switched from the remote rather than a wall plate. Most buyers looking for a curtain track with light want exactly this: one remote, one profile, one switch-on.
• Two channels — C1 / C2 let two tracks in one room run independently from one handset.
• Manual fallback — the carriage can still be moved by hand if the remote is out of reach.

What the kit contains

It ships as a set rather than a list of parts, which is the difference between a weekend job and three orders:

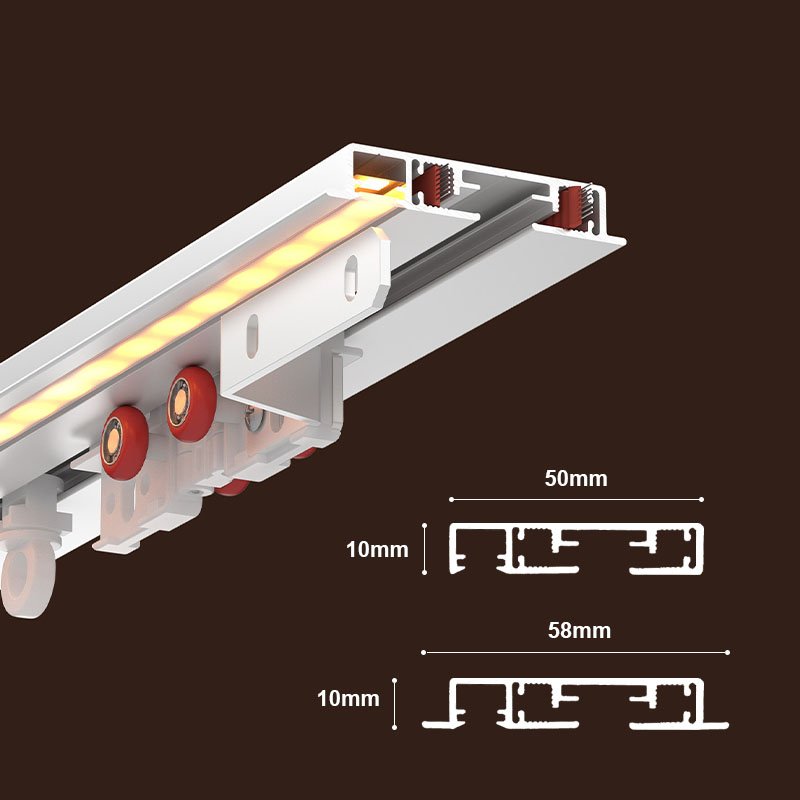

• Recessed track profile, cut to the opening span
• Integrated LED strip mounted in the profile
• Compact motor unit and mounting plate
• Multi-button handset with light control and two channels

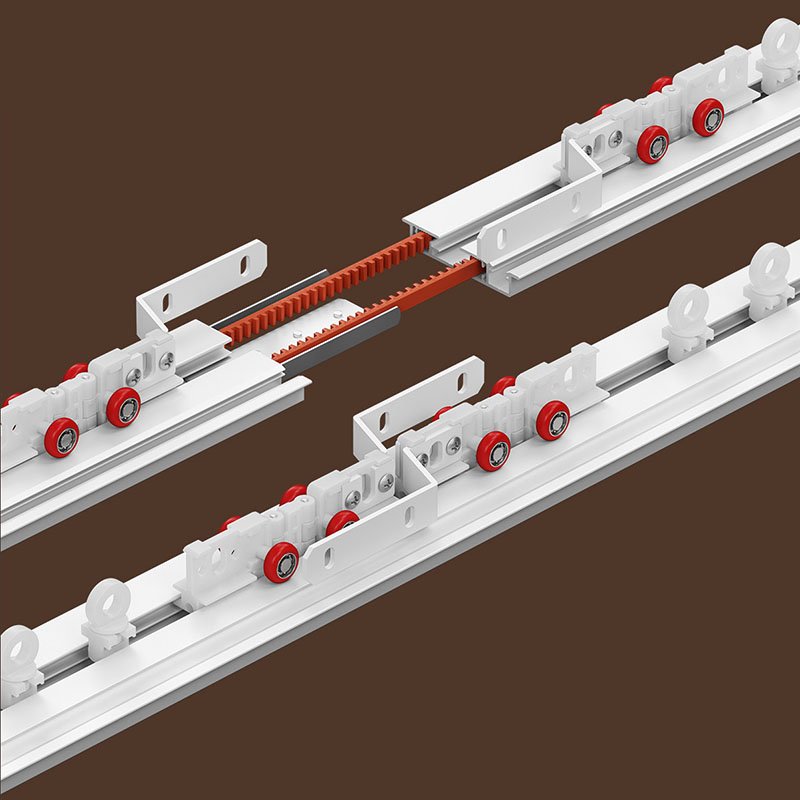

• Glider rings and end caps
• Fixings for ceiling slot or surface mounting

Installation

1. Form or mark the line — a ceiling slot if the build allows it, or a surface mount against the slab.
2. Fix the track — set it straight and level; a recessed rail shows every millimetre of error.
3. Connect the light and the motor — the strip is pre-mounted in the profile; the motor clips to the end.
4. Hang and pair — fit the rings, hang the curtain, run the carriage to both end stops once so the motor learns the travel.

For a track that has to go into an existing ceiling without a slot, the hidden curtain track is the surface-mounted option. Where the brief is light only, without the recess, the smart light integrated electric curtain track covers it.

Where it works

• Living rooms and bedrooms — full-drop curtains with the light washing the ceiling: the classic recessed ceiling curtain track brief.
• Hotel rooms — one handset per room, two channels for window and partition.
• Showrooms and reception areas — the ceiling stays clean, the lighting does the work.
• Bathrooms — a recessed shower curtain track keeps the rail out of a wet zone while the light stays above splash height.

Specifications

Every recessed curtain track is made to your opening span, not cut from stock. LED output, colour temperature and dimming capability are confirmed per order — we spec the light to the room rather than quoting one strip for every job, and we do not assume a rating across our track range.

Load rating and motor voltage are confirmed against your curtain weight and market before production.

Questions buyers ask

What does a recessed curtain track need from my ceiling?

Ideally a slot: formed in the plasterboard, it takes the profile so the rail sits flush with the ceiling. If the ceiling is already finished, a surface mount against the slab still gives a clean line, just with the profile visible. Send a photo of the ceiling and we will tell you which one your build can take.

Can the light be used without moving the curtain?

Yes. The light and the drive are separate functions on the handset, so the strip can be on with the curtain closed, or off with the curtain open.

Does it work with a smart home system?

The standard kit runs on the handset. A smart module can be specified where the project needs app or voice control — tell us the platform at quotation stage and we match the module to it rather than promising compatibility after the fact.

What length can the track be made to?

Made to your opening span rather than a fixed stock length. Send the wall-to-wall width and the ceiling type, and we return a drawing with the motor position and the LED entry point before production.

Is this the same as your hidden curtain track?

No. The hidden curtain track is a surface-mounted profile that reads as hidden. This one is built to sit inside the ceiling and carries the LED strip as part of the same profile — the difference shows the moment the lights come on.

Request a quote

Tell us the opening width, the ceiling type (slot or slab), how many tracks in the room, whether you need two channels, and the finish. We come back with a drawing, the LED specification and a unit price — usually within one working day. Trade buyers, interior contractors and hotel specifiers: ask about OEM branding, custom lengths and project quantities.

Related ranges: the mini curtain motor on its own, 2–6 m adjustable motorized curtain track systems, and ceiling-mounted curtain tracks.
